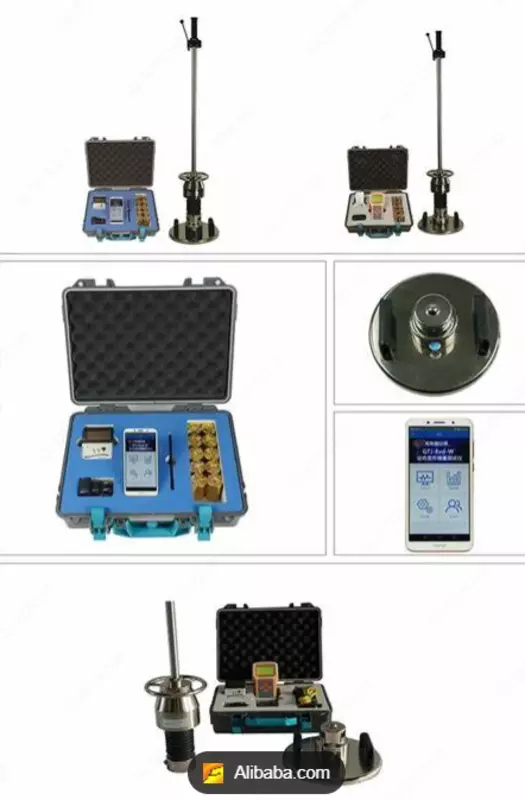

EVD Light Weight Deflectometer
Артикул: P-1059085 Под заказ-
от 30 000 000 сум
от 1 шт.
Various types of soil and earth-rock mixed fillers with a
particle size not larger than 1/4 of the load plate diameter
Test scope
10Mpa≤Evd≤225Mpa Test impact depth
0-500mm
Work enviroment:Temperature: -10-40℃ Humidity:﹤
90% HR
Loading device
Weight: 15kg drop weight 10kg
Dropping height of drop hammer: 700±20mm
Maximum impact force: 7.07kN
Shock duration: 18±1mm
Load plate
Weight: 15kg
Diameter: 300mm
Thickness:20mm
Handheld host
Specifications
Screen size: 3 inches
Subsidence test range
Volume: 100*205*40mm
Storage capacity
Weight: 0.8kg
0.10mm~2.00mm
2000 sets of test data
